25% OFFIn StockSchneider Electric Ammeter, Gologic Panel Meter, DM3115, Three Phases
This digital panel meter is part of the GoLogic Panel Meter Series. This panel meter replaces multiple analog meters through single digital meter.
25% OFFIn StockSchneider Electric Voltmeter, GoLogic Panel Meter, DM1125, Single Phase
This digital panel meter is part of the GoLogic Panel Meter Series.

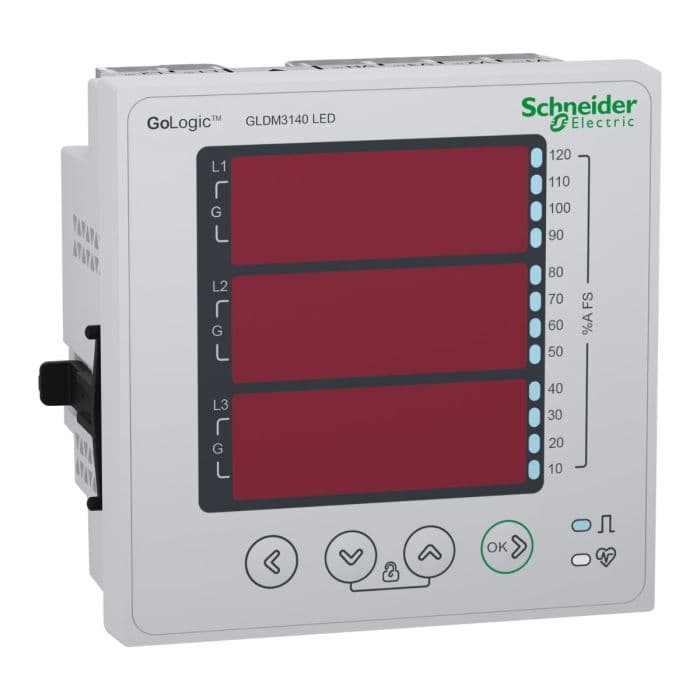

In StockSchneider Electric Power and Energy Meter, GoLogic DM3141, volt, amps and frequency meter
This digital panel meter is part of the GoLogic Panel Meter Series. Specifications: Main Range Go Series Product name GoLogic DM3000 Device short name GLDM3140 LED Product or component type VAF PF meter Complementary Device application Remote monitoring Motor control Power distribution Building management system Energy monitoring Type of measurement Current Voltage Frequency RPM Metering type Unbalance current Calculated neutral current Unbalance voltage Rotation speed Phase currents Voltage U21, U32, U13, V1, V2, V3 Frequency Average voltage Vavg Average current Iavg Power factor Counter functions Power interruption ON hour counting [Us] rated supply voltage 48...277 V AC 45...65 Hz 48...277 V DC Network frequency 50 Hz 60 Hz [In] rated current 1 A 5 A type of network 2P + N 2P 3P + N 3P 1P + N Maximum power consumption in VA 4 VA at 240 V between phase and neutral Maximum power consumption in W 2 W at 240 V Display type 8 segments LED Display colour Red Messages display capacity 3 fields of 4 characters Display digits 12 digit(s) - 14.2 mm in height Communication of data Reading of measurements Instantaneous and demand values Revolution speed All counters Tamperproof of settings Protected by access code Sampling rate 32 samples/cycle Measurement current 10…6000 mA Signal Current 0.005...10 A (impedance 0.3 MOhm)6 x Measurement voltage 80…480 V AC 50...60 Hz between phases 46…277 V AC 50...60 Hz between phase and neutral 100…999000 V AC 50...60 Hz with external VT 35…600 V AC 50...60 Hz full voltage range Frequency measurement range 48…52 Hz 58…62 Hz Measurement accuracy Active energy +/- 1 % Reactive energy +/- 2 % Apparent energy +/- 1 % Active power +/- 1 % Reactive power +/- 1 % Apparent power +/- 1 % Current +/- 0.5 % Voltage +/- 0.5 % Frequency +/- 0.05 % 48...52 Hz / 58...62 Hz Frequency +/- 0.2 % 30...70 Hz Power factor +/- 0.01 Harmonic distortion (I THD & U THD) +/- 5 % Accuracy class Class 1 active energy conforming to IEC 62053-21 Class 2 reactive energy conforming to IEC 62053-23 Class 1 apparent energy Class 1 active power Class 1 reactive power Class 1 apparent power Class 1 current Class 1 voltage Class 1 power factor Class 5 harmonic distortion (I THD & U THD) Demand intervals 1 s Local signalling Green LED: activity Green LED: communication 1...9999000 pulse/ k_h (kWh, kVAh, kVARh) Communication port protocol Modbus RTU at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2-wire, insulation 2500 V Communication port support Screw terminal: RS485 Material Polycarbonate Flame retardance V-0 conforming to UL 94 Mounting mode Flush-mounted Mounting support Framework Installation category III Type of installation Indoor installation Measurement category Category III 80…480 V Electrical insulation class Class II Connections - terminals Current circuit: screw clamp terminals (bottom) 2.08…3.31 mm² cable(s) Voltage circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s) Control circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s) Communication: screw clamp terminals (bottom) 0.33…3.31 mm² cable(s) Tightening torque Current circuit: 0.9…1 N.m Philips No 2 screwdriver Voltage circuit: 0.9…1 N.m Philips No 2 screwdriver Control circuit: 0.9…1 N.m Philips No 2 screwdriver Communication: 0.5…0.6 N.m Philips no 1 screwdriver Wire stripping length Current circuit: 3.68 mm Voltage circuit: 7 mm Control circuit: 7 mm Communication: 7 mm Standards IEC 61010-1:ed. 3 UL 61010-1:ed. 3 Product certifications CE conforming to IEC 61010-1 CULus conforming to UL 61010-1 CULus conforming to CSA C22.2 No 61010-1 RCM EAC Width 96 mm Depth Outside : 13.9 mm Panel : 48.8 mm Height 96 mm Net weight 300 g Environment Electromagnetic compatibility Electrostatic discharge conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 Surge immunity test conforming to IEC 61000-4-5 Conducted RF disturbances conforming to IEC 61000-4-6 Magnetic field at power frequency conforming to IEC 61000-4-8 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 Emission tests conforming to FCC part 15 class A Emission tests conforming to FCC part 15 Subpart C Emission tests conforming to FCC part 15 Subpart E Overvoltage category III IP degree of protection IP51 front: conforming to IEC 60529 IP30 body: conforming to IEC 60529 Relative humidity 5…95 % at 50 °C Pollution degree 2 Ambient air temperature for operation -10…60 °C Ambient air temperature for storage -20…70 °C Operating altitude <= 2000 m service life 7 year(s) More view

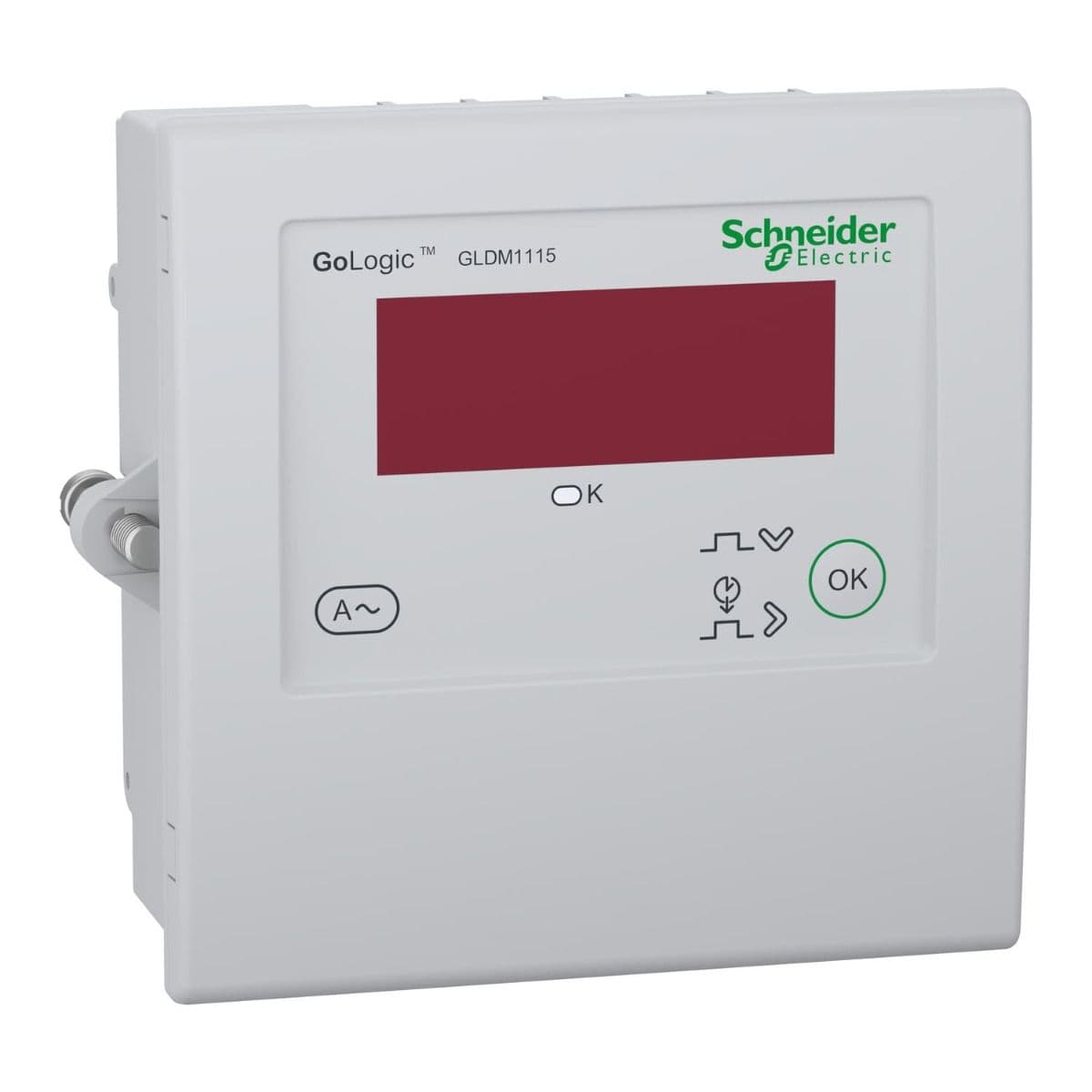

25% OFFIn StockSchneider Electric Ammeter, Gologic Panel Meter, DM1115, Single Phase
Ammeter, Gologic Panel Meter, Single Phase | METSEGLDM1115 This digital panel meter is part of the GoLogic Panel Meter Series. Specifications: Main Range Go Series Product name GoLogic DM1000 Device short name DM1115 Product or component type Ammeter Device application Control Motor control Power distribution Panel installation Complementary Poles description 1P + N Type of measurement Current [Us] rated supply voltage 48...250 V AC +/- 10 % 48...250 V DC +/- 10 % Supply frequency 50/60 Hz +/- 5 Hz Network frequency 50 Hz 60 Hz Maximum power consumption in VA 3 VA at 240 V AC Display type LED Display digits 4 Full scale display 999.9 Control type Key built-in Analogue input type Current 0...5 Asingle phase Measurement current 1/5 A, 50…6000 mA AC, 50/60 Hz +/- 5 Hz Accuracy Current +/- 0.5 % of full scale for class 0.5 Device mounting Flush Mounting support Panel Type of installation Indoor Measurement category Category III Standards IEC 61326-1 Product certifications CE conforming to IEC 61010-1 Environment Electromagnetic compatibility Conducted and radiated emissions class A conforming to CISPR 11 Electrostatic discharge conforming to IEC 61000-4-2 Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 Surge immunity test conforming to IEC 61000-4-5 Conducted RF disturbances conforming to IEC 61000-4-6 Magnetic field at power frequency conforming to IEC 61000-4-8 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 Harmonics conforming to IEC 61000-3-2 Limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3 Immunity to radiated fields conforming to IEC 61000-4-3 IP degree of protection Front panel: IP51 conforming to IEC 60529 Body: IP30 conforming to IEC 60529 Relative humidity 5…95 % Pollution degree 2 Ambient air temperature for operation -10…60 °C Ambient air temperature for storage -25…70 °C Colour Grey Width 96 mm Height 96 mm Depth 43.5 mm Cut-out dimensions 92 x 92 mm Net weight 175 g

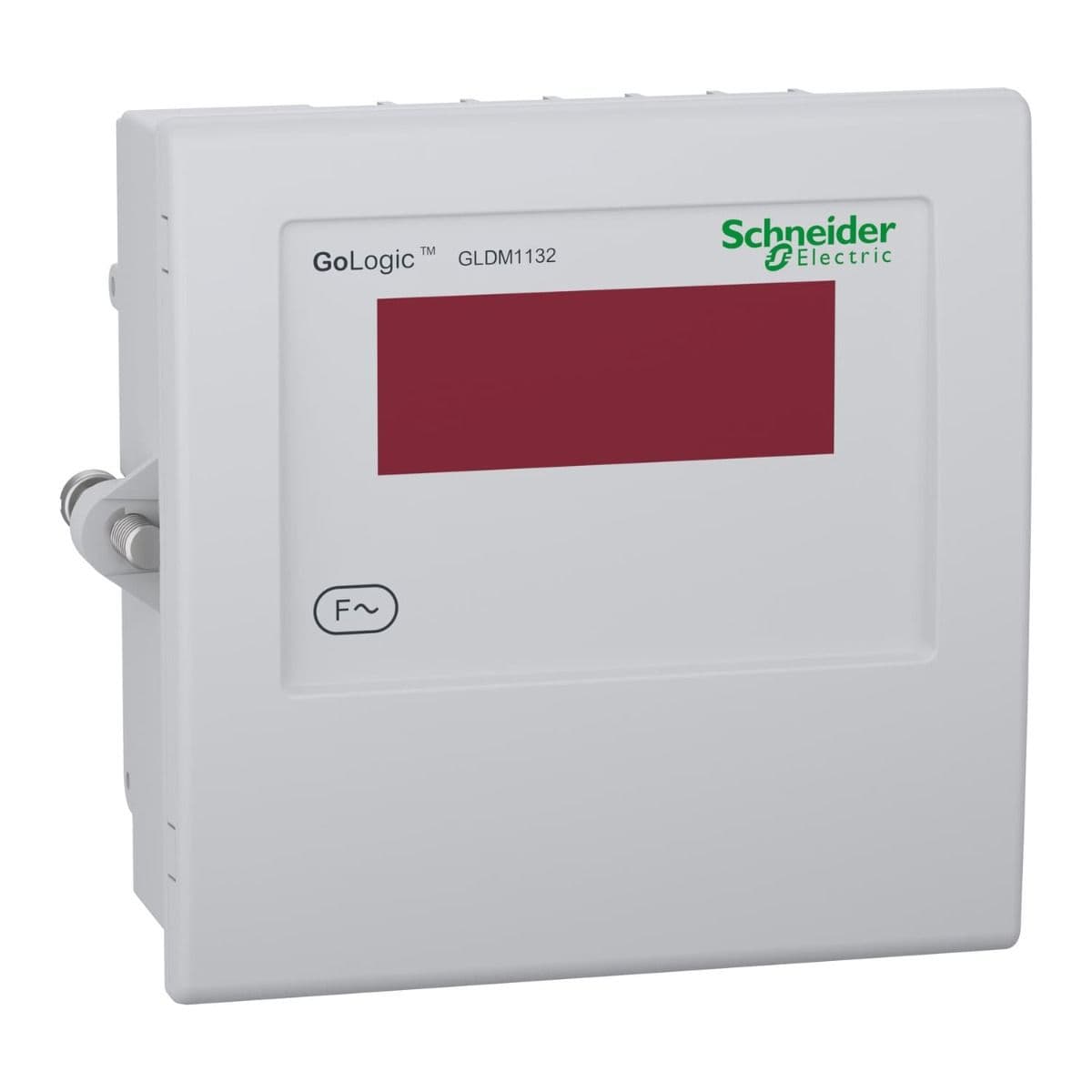

25% OFFIn StockSchneider Electric Frequency Meter, Gologic Panel Meter, DM1132, Single Phase
This digital panel meter is part of the GoLogic Panel Meter Series. Specifications: Main Range Go Series Product name GoLogic DM1000 Device short name DM1132 Product or component type Frequency meter Device application Control Motor control Power distribution Panel installation Complementary Poles description 1P + N Type of measurement Frequency [Us] rated supply voltage 48...250 V AC +/- 10 % 48...250 V DC +/- 10 % Supply frequency 50/60 Hz +/- 5 Hz Network frequency 60 Hz 50 Hz Maximum power consumption in VA 3 VA at 240 V AC Display type LED Display digits 4 Full scale display 99.99 Frequency measurement range 20…100 Hz 80…480 V AC phase to phase 20…100 Hz 44…480 V AC phase to phase Accuracy Frequency +/- 0.2 % of full scale Device mounting Flush Mounting support Panel Type of installation Indoor Measurement category Category III Standards IEC 61326-1 Product certifications CE conforming to IEC 61010-1 Environment Electromagnetic compatibility Conducted and radiated emissions class A conforming to CISPR 11 Electrostatic discharge conforming to IEC 61000-4-2 Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 Surge immunity test conforming to IEC 61000-4-5 Conducted RF disturbances conforming to IEC 61000-4-6 Magnetic field at power frequency conforming to IEC 61000-4-8 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 Harmonics conforming to IEC 61000-3-2 Limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3 Immunity to radiated fields conforming to IEC 61000-4-3 IP degree of protection Front panel: IP51 conforming to IEC 60529 Body: IP30 conforming to IEC 60529 Relative humidity 5…95 % Pollution degree 2 Ambient air temperature for operation -10…60 °C Ambient air temperature for storage -25…70 °C Colour Grey Width 96 mm Height 96 mm Depth 43.5 mm Cut-out dimensions 92 x 92 mm Net weight 160 g
25% OFFIn StockSchneider Electric Power And Energy Meter, Gologic DM3141, Volt, Amps And Frequency Meter, LED, Power Factor, Class 1.0 Without Communication
This digital panel meter is part of the GoLogic Panel Meter Series. Main Range Go Series product name GoLogic DM3000 Device short name GLDM3140 LED Product or component type VAF PF meter Complementary Device application Remote monitoring Motor control Power distribution Building management system Energy monitoring Type of measurement Current Voltage Frequency RPM Metering type Unbalance current Calculated neutral current Unbalance voltage Rotation speed Phase currents Voltage U21, U32, U13, V1, V2, V3 Frequency Average voltage Vavg Average current Iavg Power factor Counter functions Power interruption ON hour counting [Us] rated supply voltage 48...277 V AC 45...65 Hz 48...277 V DC Network frequency 50 Hz 60 Hz [In] rated current 1 A 5 A type of network 2P + N 2P 3P + N 3P 1P + N Maximum power consumption in VA 4 VA at 240 V between phase and neutral Maximum power consumption in W 2 W at 240 V Display type 8 segments LED Display colour Red Messages display capacity 3 fields of 4 characters Display digits 12 digit(s) - 14.2 mm in height Communication of data Reading of measurements Instantaneous and demand values Revolution speed All counters Tamperproof of settings Protected by access code Sampling rate 32 samples/cycle Measurement current 10…6000 mA Signal Current 0.005...10 A (impedance 0.3 MOhm)6 x Measurement voltage 80…480 V AC 50...60 Hz between phases 46…277 V AC 50...60 Hz between phase and neutral 100…999000 V AC 50...60 Hz with external VT 35…600 V AC 50...60 Hz full voltage range Frequency measurement range 48…52 Hz 58…62 Hz Measurement accuracy Active energy +/- 1 % Reactive energy +/- 2 % Apparent energy +/- 1 % Active power +/- 1 % Reactive power +/- 1 % Apparent power +/- 1 % Current +/- 0.5 % Voltage +/- 0.5 % Frequency +/- 0.05 % 48...52 Hz / 58...62 Hz Frequency +/- 0.2 % 30...70 Hz Power factor +/- 0.01 Harmonic distorsion (I THD & U THD) +/- 5 % Accuracy class Class 1 active energy conforming to IEC 62053-21 Class 2 reactive energy conforming to IEC 62053-23 Class 1 apparent energy Class 1 active power Class 1 reactive power Class 1 apparent power Class 1 current Class 1 voltage Class 1 power factor Class 5 harmonic distorsion (I THD & U THD) Demand intervals 1 s Local signalling Green LED: activity Red LED: output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh) Material Polycarbonate Flame retardance V-0 conforming to UL 94 Mounting mode Flush-mounted Mounting support Framework Installation category III Type of installation Indoor installation Measurement category Category III 80…480 V Electrical insulation class Class II Connections - terminals Current circuit: screw clamp terminals (bottom) 2.08…3.31 mm² cable(s) Voltage circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s) Control circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s) Tightening torque Current circuit: 0.9…1 N.m Philips No 2 screwdriver Voltage circuit: 0.9…1 N.m Philips No 2 screwdriver Control circuit: 0.9…1 N.m Philips No 2 screwdriver Wire stripping length Current circuit: 3.68 mm Voltage circuit: 7 mm Control circuit: 7 mm Standards IEC 61010-1:ed. 3 UL 61010-1:ed. 3 Product certifications CE conforming to IEC 61010-1 CULus conforming to UL 61010-1 CULus conforming to CSA C22.2 No 61010-1 RCM EAC Width 96 mm Depth Outside : 13.9 mm Panel : 48.8 mm Height 96 mm Net weight 300 g Environment Electromagnetic compatibility Electrostatic discharge conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 Surge immunity test conforming to IEC 61000-4-5 Conducted RF disturbances conforming to IEC 61000-4-6 Magnetic field at power frequency conforming to IEC 61000-4-8 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 Emission tests conforming to FCC part 15 class A Emission tests conforming to FCC part 15 Subpart C Emission tests conforming to FCC part 15 Subpart E Overvoltage category III IP degree of protection IP51 front: conforming to IEC 60529 IP30 body: conforming to IEC 60529 Relative humidity 5…95 % at 50 °C Pollution degree 2 Ambient air temperature for operation -10…60 °C Ambient air temperature for storage -20…70 °C Operating altitude <= 2000 m Service life 7 year(s)
25% OFFIn StockSchneider Electric Voltmeter, GoLogic Panel Meter, DM3125, Three Phases
This digital panel meter is part of the GoLogic Panel Meter Series. This panel meter replaces multiple analog meters through single digital meter. Main Range Go Series product name GoLogic DM3000 Device short name DM3125 Product or component type Voltmeter Device application Control Motor control Power distribution Panel installation Complementary Poles description 3P 3P + N Type of measurement Voltage [Us] rated supply voltage 48...250 V AC +/- 10 % 48...250 V DC +/- 10 % Supply frequency 50/60 Hz +/- 5 Hz Network frequency 50 Hz 60 Hz Maximum power consumption in VA 3 VA at 240 V AC Display type LED Display digits 4 Full scale display 999.9 Control type Key built-in Analogue input type Voltagethree phase Measurement voltage 48…250 V AC phase to neutral, 50/60 Hz +/- 10 % 80…480 V AC phase to phase, 50/60 Hz +/- 10 % Accuracy Voltage +/- 0.5 % of full scale for class 0.5 Device mounting Flush Mounting support Panel type of installation Indoor Measurement category Category III Standards IEC 61326-1 Product certifications CE conforming to IEC 61010-1 Environment Electromagnetic compatibility Conducted and radiated emissions class A conforming to CISPR 11 Electrostatic discharge conforming to IEC 61000-4-2 Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 Surge immunity test conforming to IEC 61000-4-5 Conducted RF disturbances conforming to IEC 61000-4-6 Magnetic field at power frequency conforming to IEC 61000-4-8 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 Harmonics conforming to IEC 61000-3-2 Limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3 Immunity to radiated fields conforming to IEC 61000-4-3 IP degree of protection Front panel: IP51 conforming to IEC 60529 Body: IP30 conforming to IEC 60529 relative humidity 5…95 % pollution degree 2 Ambient air temperature for operation -10…60 °C Ambient air temperature for storage -25…70 °C Colour Grey Width 96 mm Height 96 mm Depth 43.5 mm Cut-out dimensions 92 x 92 mm Product weight 220 g

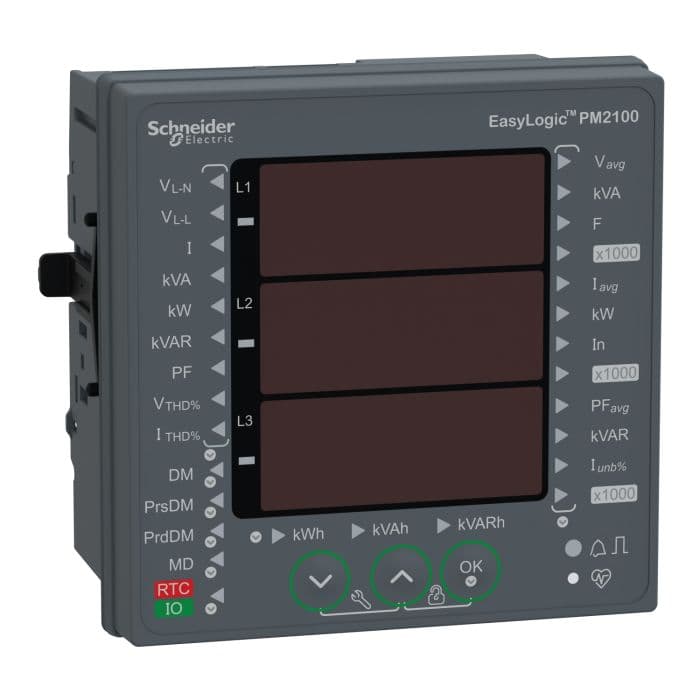

25% OFFIn StockSchneider Electric EasyLogic PM2120 Power and Energy Meter, Up to 15th Harmonic, LED Display, RS485, Class 1
The Schneider Electric METSEPM2120 is an EasyLogic PM2120 Power and Energy Meter designed for accurate monitoring and measurement of electrical parameters. With the ability to measure up to the 15th harmonic, this meter provides comprehensive data on power quality. Featuring a clear LED display and RS485 communication, it offers real-time access to critical information. The meter is rated as Class 1 for high precision, making it suitable for a wide range of applications where precise energy measurement is essential.
